GO-354 Plunge/ Angular Type CNC Cylindrical GrinderGO-354 CNC cylindrical grinder that provides plunge grinding and angular grinding, its versatility catering to more complex and varied grinding tasks can handle different grinding operations in a single setup, significantly reducing machining time and boosting productivity applicable to a small piece and precise part machining.
If your workpiece is larger, please refer to the GO-356 CNC cylindrical grinder.
Machine Feature
- Angular type/Plunge type grinding.
- The highest grinding speed can reach 60M/s.
- High rigidity structure, to make sure the best grinding stability.
- Circularity reach 0.8µm.
- X,Z axis structure is V type and planar type hard track.
- This machine equip FANUC Oi-TF Plus controller.
- Equip acoustics monitoring system,to monitoring grinding quality.
- Multiple type of automatic loading and unloading. (option installation)
- Tailstock have air buoyance, can adjust more quick and easy.
- Online measure system. (option installation)
- Thread grinding and non-circular grinding. (option installation)
- Wheel balancers to output grinding wheel’s state. (option installation)
Machine Spectification
| Typ | GO-354 | GO-356 |
|---|---|---|
| Distance Between Centers | 400mm | 650mm |
| Workpiece Length | 400mm | 650mm |
| Center Heigh | 175mm | 175 mm |
| Max. Workpiece Weight | 80 kg | 80 kg |
| Longitudinal Axis : X axi | ||
| Max. Travel | 250 mm | 250 mm |
| Speed | 0.001-10000mm/min | 0.001-10000mm/min |
| Cross Axis: Z axis | ||
| Max. Travel | 620mm | 880mm |
| Speed | 0.001-10000mm/min | 0.001-10000mm/min |
| Wheel Head | ||
| Max. Spindle Power | 7.5KW/12KW | 7.5KW/12KW |
| Wheel Dimensio | 510×60/80×203 mm | 510×60/80×203 mm |
| Wheel Linear Velocity | 50-60 m/s | 50-60 m/s |
| Workhead | ||
| Revolve Speed Range | 1-1000 RPM | 1-1000 RPM |
| Max. Spindle Power | 1.2KW(FANUC) | 1.2KW(FANUC) |
| Speed Reduction Ratio | 1：3 | 1：3 |
| Grinding Circularity | < 0.8 µm | < 0.8 µm |
| Center Taper | MT4 | MT4(STD) MT5(options) |
| Tailstock | ||
| Center Taper | MT3（STD）MT4（options） | MT4 |
| Max. Sleeve Travel | 35mm(1.37") | 35mm(1.37") |
| Sleeve Diameter | 50mm | 50mm |
| Taper Fine Tuning Travel | ±20µm | ±20µm |
| Control System | FANUC 0i-TF Plus | FANUC 0i-TF Plus |
Industry of Application
-
Part of Machine Spindle
-
Vehicle Transmitting Gear
-
Mold Manufacturing
-
Medical Instrument
-
Aerospace Industry
Smart Factory

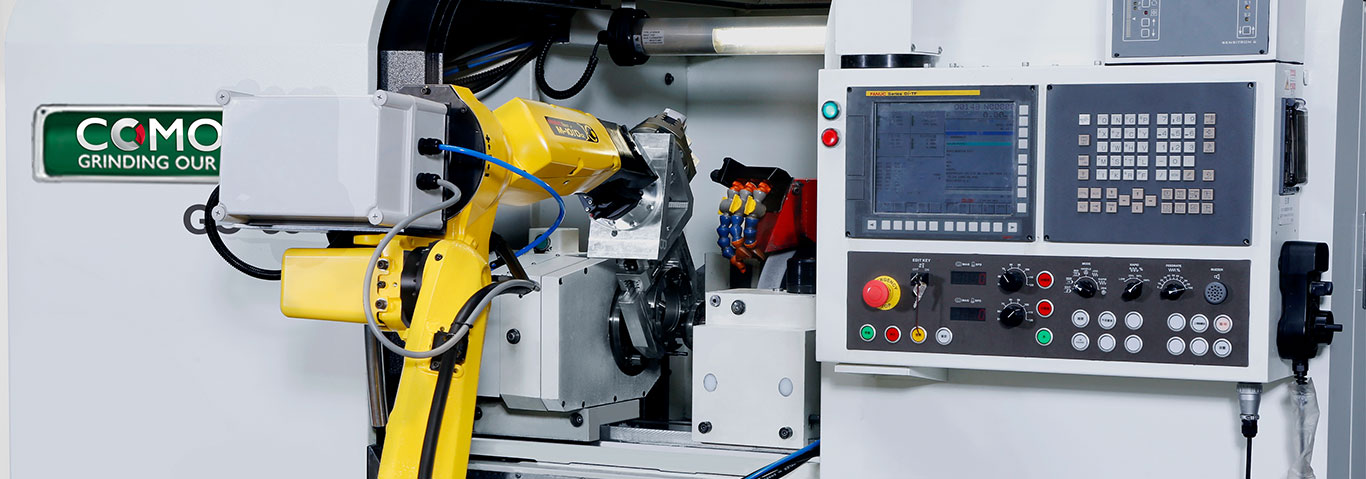

We bring in robotic arm, we have made a step towards smart factory.
Besides make good use of cooperate immediately,both make manufactureing process more flexible and safety.
Besides make good use of cooperate immediately,both make manufactureing process more flexible and safety.

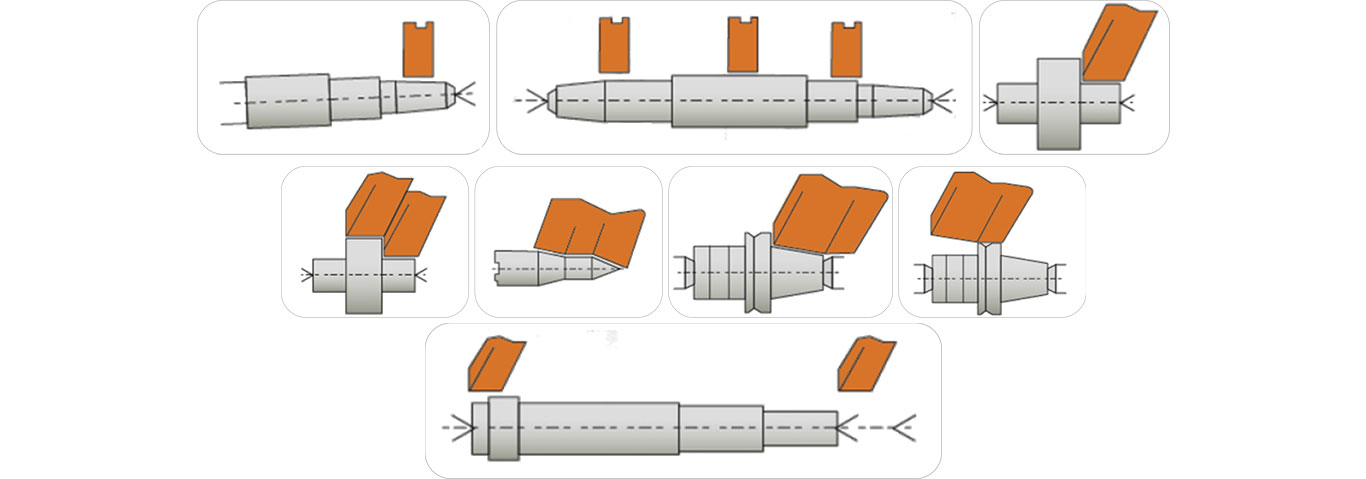

Multifaceted Processing, Once and For All
Take controller special software of design,to grinding complex workpiece and multifaceted processing can do once for all.
Make sure of high efficiency and high degree of precision,both lower the cost of manufacturing.
Make sure of high efficiency and high degree of precision,both lower the cost of manufacturing.

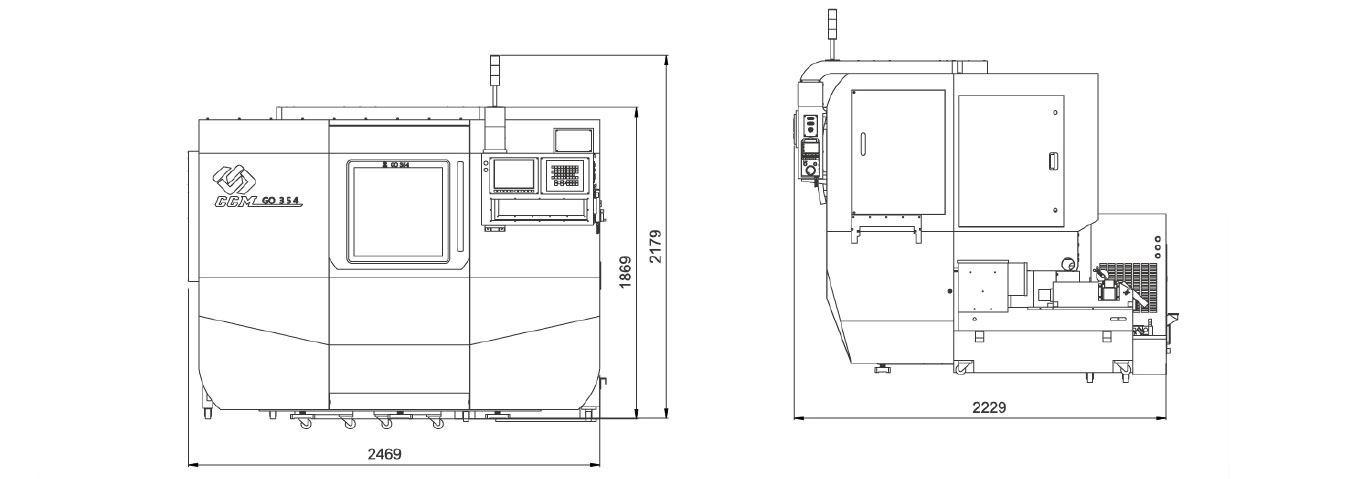

Machine Dimension
*Drawing Unit : mm
