CNC Cylindrical Grinding Machine
GO-356 CNC Cylindrical Grinding MachineGO-356 is a highly precise and versatile CNC cylindrical grinding machine that offers automation, ensuring consistent and high-quality results while handling complex shapes, this CNC cylindrical grinding machine machining ability to achieve tight tolerances and excellent surface finish makes them ideal for grinding components such as shafts, gears, turbine parts, surgical tools, molds, and more.
GO-356 CNC cylindrical grinder has a distance between centers of 650mm, allowing it to accommodate workpieces up to 650mm in length suitable for larger workpieces than the GO-354.
CNC Cylindrical Grinding Machine Feature

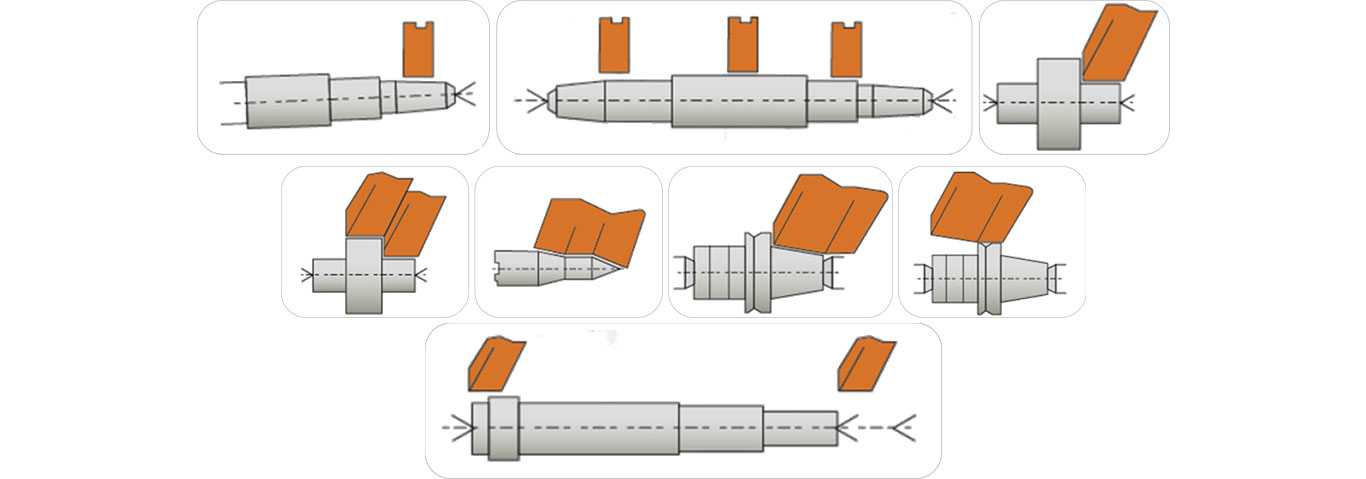

- Angular type/Plunge type grinding.
- The highest grinding speed can reach 60M/s.
- High rigidity structure, to make sure the best grinding stability.
- Circularity reach 0.8µm.
- X,Z axis structure is V type and planar type hard track.
- This machine equip FANUC Oi-TF Plus controller.
- Equip acoustics monitoring system,to monitoring grinding quality.
- Multiple type of automatic loading and unloading. (option installation)
- Tailstock have air buoyance, can adjust more quick and easy.
- Online measure system. (option installation)
- Thread grinding and non-circular grinding. (option installation)
- Wheel balancers to output grinding wheel’s state. (option installation)

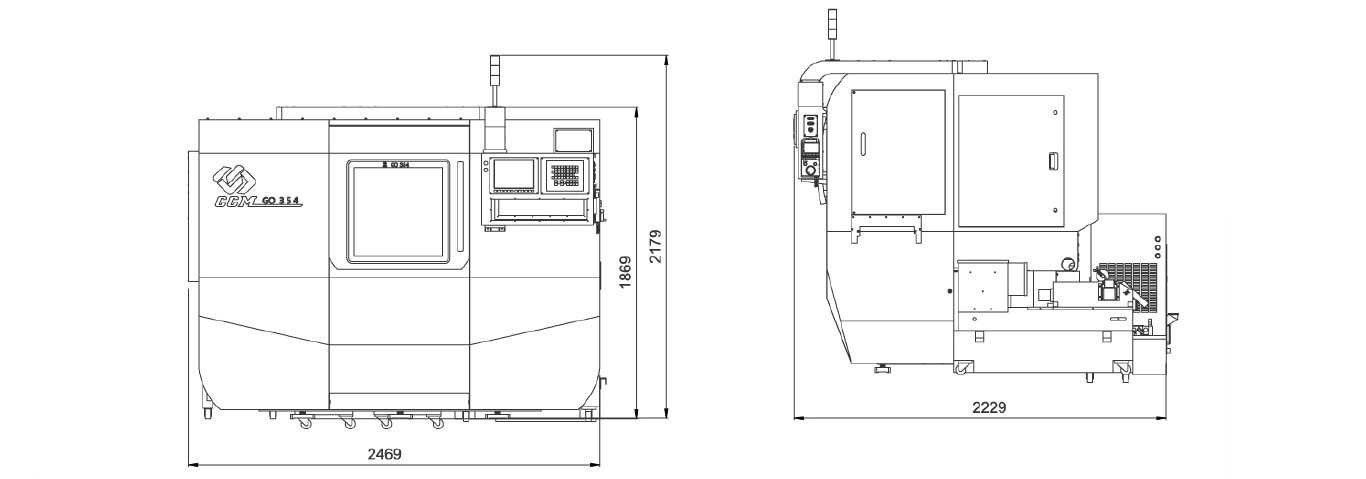

Machine Spectification
| Typ | GO-354 | GO-356 |
|---|---|---|
| Distance Between Centers | 400mm | 650mm |
| Workpiece Length | 400mm | 650mm |
| Center Heigh | 175mm | 175 mm |
| Max. Workpiece Weight | 80 kg | 80 kg |
| Longitudinal Axis : X axi | ||
| Max. Travel | 250 mm | 250 mm |
| Speed | 0.001-10000mm/min | 0.001-10000mm/min |
| Cross Axis: Z axis | ||
| Max. Travel | 620mm | 880mm |
| Speed | 0.001-10000mm/min | 0.001-10000mm/min |
| Wheel Head | ||
| Max. Spindle Power | 7.5KW/12KW | 7.5KW/12KW |
| Wheel Dimensio | 510×60/80×203 mm | 510×60/80×203 mm |
| Wheel Linear Velocity | 50-60M/s | 50-60M/s |
| Workhead | ||
| Revolve Speed Range | 1-1000 RPM | 1-1000 RPM |
| Max. Spindle Power | 1.2KW(FANUC) | 1.2KW(FANUC) |
| Speed Reduction Ratio | 1：3 | 1：3 |
| Grinding Circularity | < 0.8 µm | < 0.8 µm |
| Center Taper | MT4 | MT4(STD) MT5(options) |
| Tailstock | ||
| Center Taper | MT3（STD）MT4（options） | MT4 |
| Max. Sleeve Travel | 35mm(1.37") | 35mm(1.37") |
| Sleeve Diameter | 50mm | 50mm |
| Taper Fine Tuning Travel | ±20µm | ±20µm |
| Control System | FANUC 0i-TF Plus | FANUC 0i-TF Plus |
